Robot 机器人题测试卷

题目1

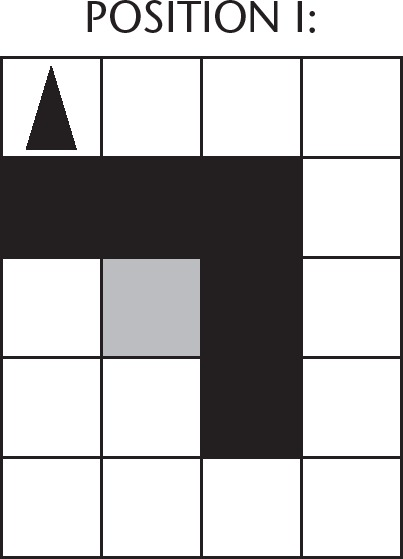

Two different starting positions of a robot are shown in the grids below. For both positions, robots are initially facing up. The robot can move into a white or gray square, but cannot move into a black region.

The program below was written to move the robot to the gray square. The program uses the procedure GOAL_REACHED(), which evaluates to true if the robot is in the gray square and evaluates to false otherwise.

REPEAT UNTIL GOAL_REACHED() {
  IF CAN_MOVE(forward) {
    REPEAT UNTIL (NOT(CAN_MOVE(forward))) {
      MOVE_FORWARD()
    }
  }
  ELSE IF CAN_MOVE(right) {
    ROTATE_RIGHT()
    REPEAT UNTIL (NOT(CAN_MOVE(forward))) {
      MOVE_FORWARD()
    }
  }
  ELSE {
    ROTATE_LEFT()
    REPEAT UNTIL (NOT(CAN_MOVE(forward))) {
      MOVE_FORWARD()
    }
  }
}

Question: In which starting position could the robot be to move correctly to the gray square?

• (A) Either Position I or Position II
• (B) Neither Position I nor Position II
• (C) Position I only
• (D) Position II only

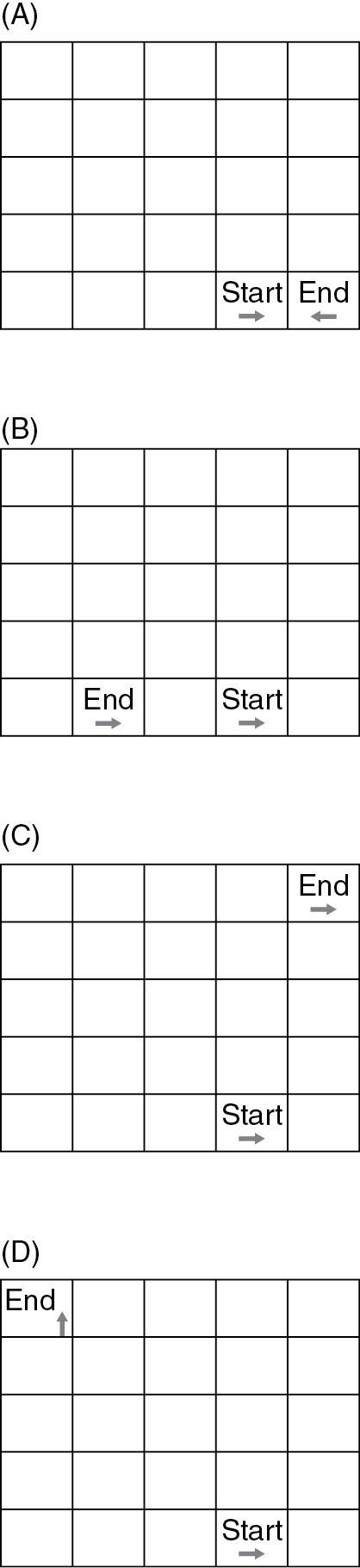

题目2

At which possible ending location does the code place the robot?

REPEAT UNTIL(END)
{
  IF(CAN_MOVE(forward))
  {
    MOVE_FORWARD()
  }
  ELSE
  {
    ROTATE_LEFT()
  }
}

题目3

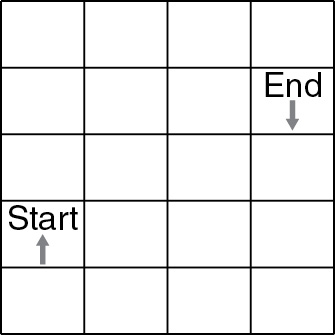

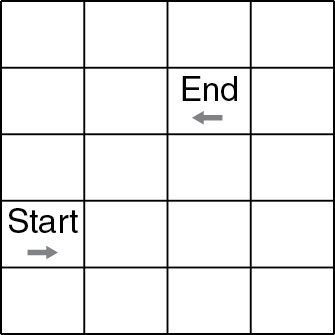

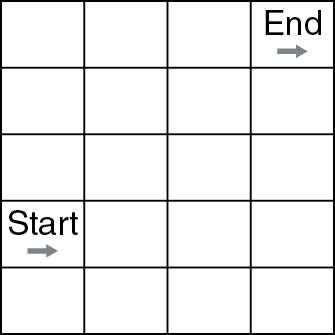

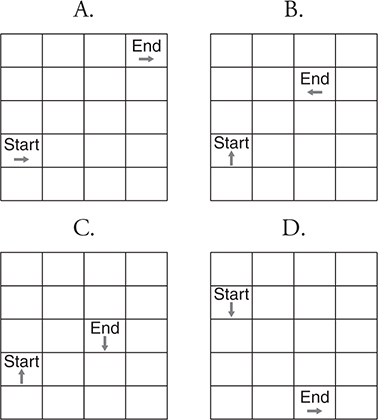

The code below is a robot algorithm, Which diagram matches the code?

• (A)
• (B)
• (C)
• (D)

题目4

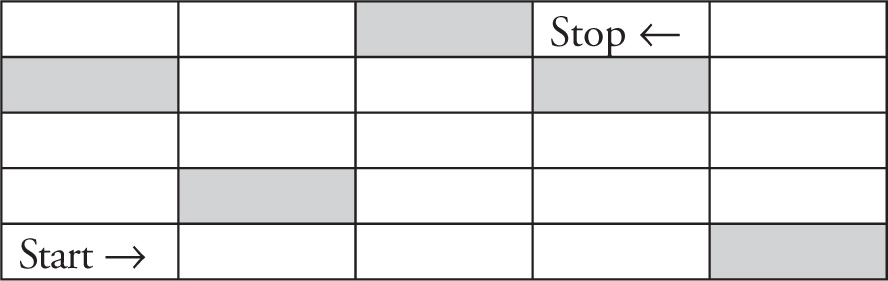

Which set of code will move the robot from start to stop and end facing the correct direction? The robot may not move into gray blocks.

• (A)

• (B)

• (C)

• (D)

题目5

Which diagram matches the code below?

题目6

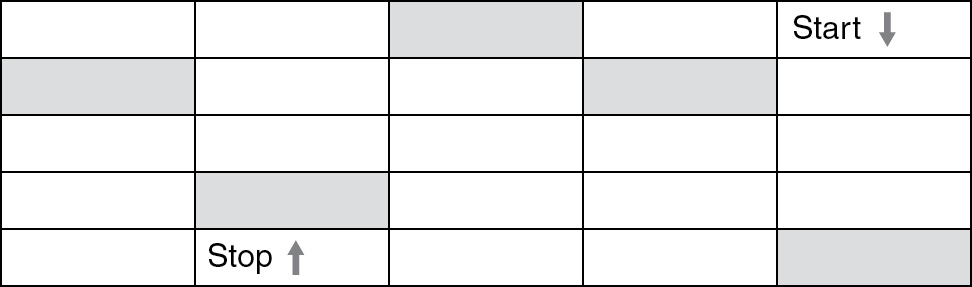

Which set of code will move the robot from start to stop? The robot may not use gray blocks.

• (A)

• (B)

• (C)

• (D)

题目7

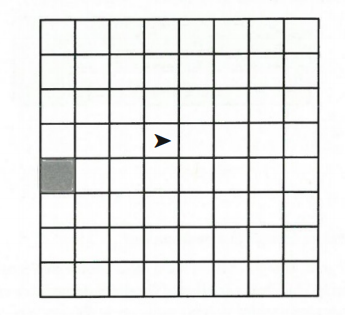

The following grid contains a robot represented as a triangle. The robot is initially facing right. Which of the following code lines can replace the missing code to move the robot to the grey square?

题目8

Line 1: move ← INPUT( )
Line 2: REPEAT move TIMES
Line 3: {
Line 4: MOVE_FORWARD( )
Line 5: ROTATE_RIGHT( )
Line 6: }

Which of the following are possible landing spots for the robot?

• (A)
• (B)
• (C)
• (D)

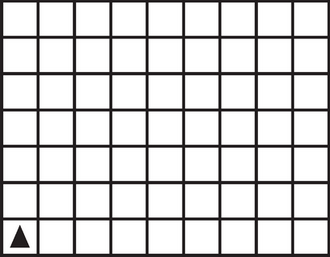

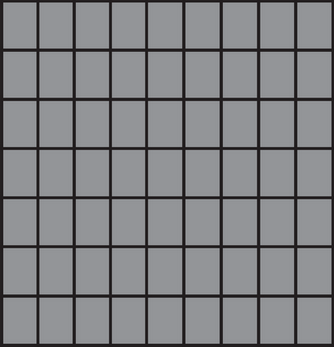

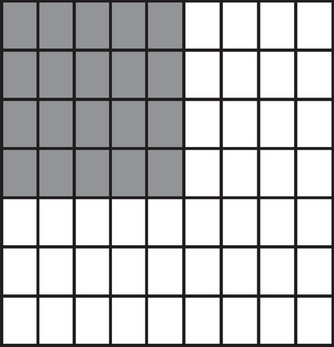

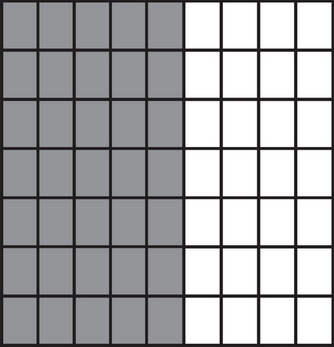

题目9

y ← RANDOM ( 1, 10000)
REPEAT y TIMES
{
n ← RANDOM (0, 3)
REPEAT n TIMES
{
  if CAN_MOVE FORWARD ; MOVE_FORWARD ( )
}
p ← RANDOM (0, 1)
REPEAT p TIMES
{
  TURN_LEFT ( )
}
}

What are the possible landing spots for the robot?

• (A)
• (B)
• (C)
• (D)

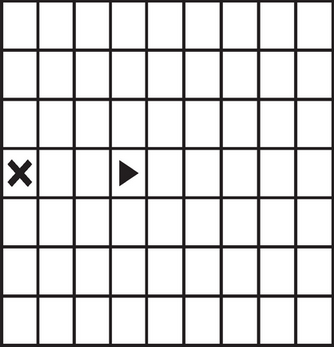

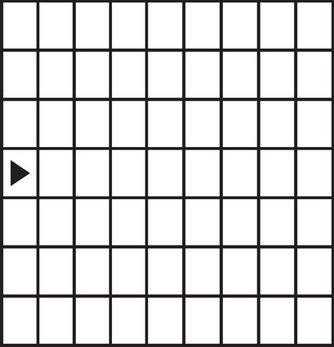

题目10

IF (TRUE = TRUE OR 7 < 6)
{
MOVE_FORWARD( )
MOVE_FORWARD( )
MOVE_FORWARD( )
}
IF (4 > 4 AND TRUE = FALSE)
{
MOVE_FORWARD( )
}
IF (3=3)
{
MOVE_FORWARD( )
MOVE_FORWARD( )
MOVE_FORWARD( )
}

• (A)
• (B)
• (C)
• (D)
